DIN Standard Transformer Bushing

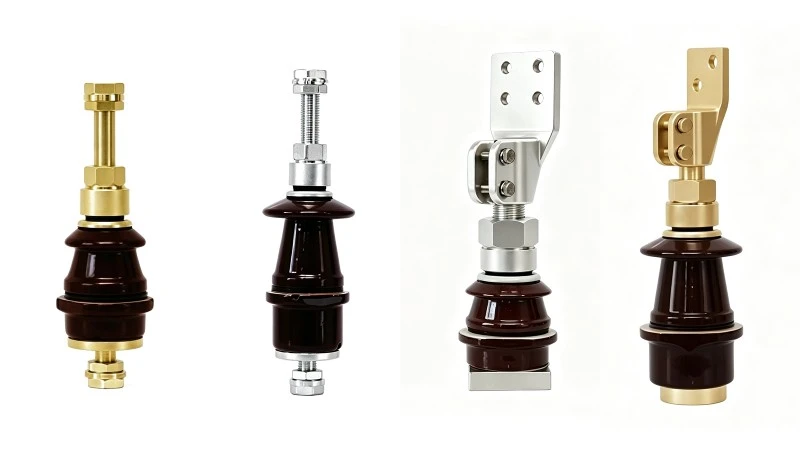

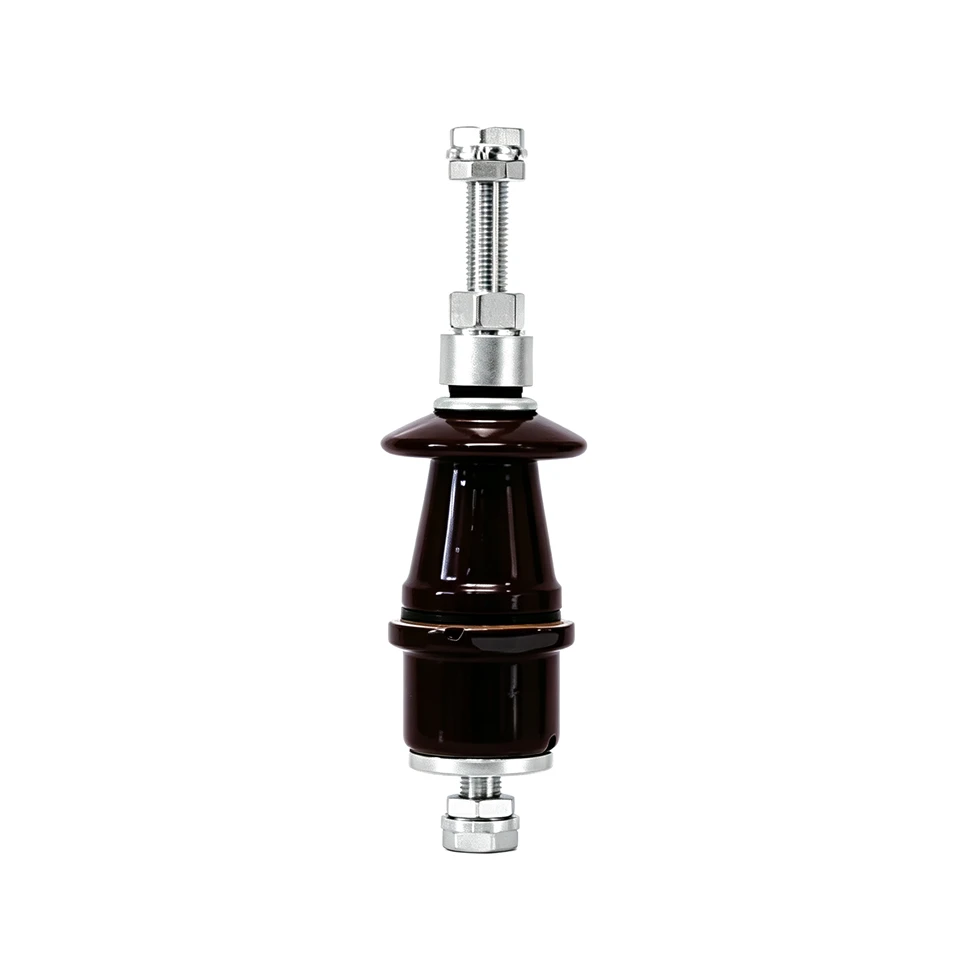

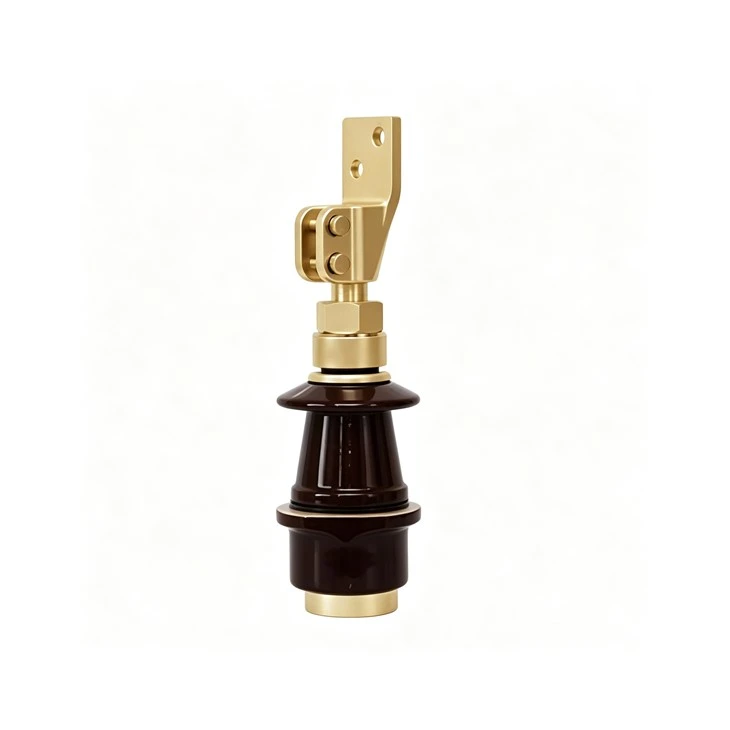

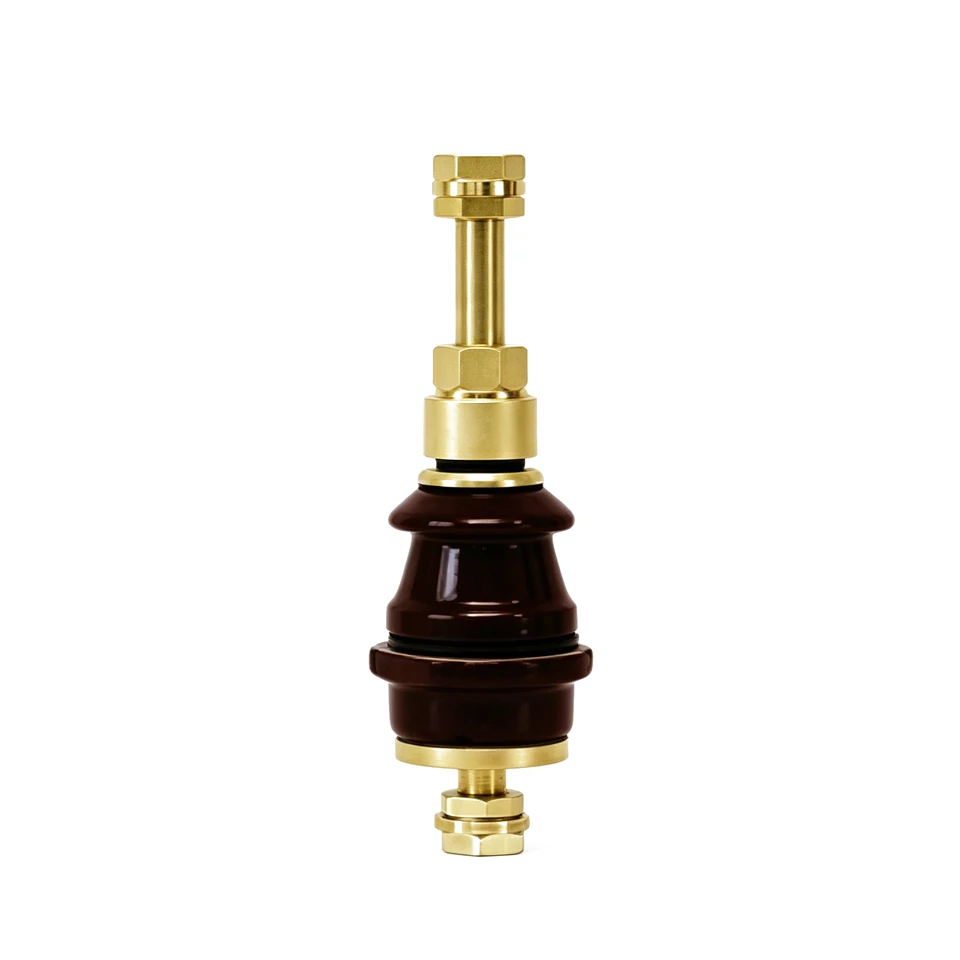

The DIN standard bushing is a transformer bushing manufactured in accordance with German industrial standards (DIN), serving as a passport to European and many overseas markets. German industrial standards are renowned for rigor and standardization; the DIN bushing standard system has been developed and refined over decades, with clear provisions on electrical performance, insulation levels, mounting dimensions, materials and testing requirements, and is widely adopted by transformer manufacturers across Europe, the Middle East, Southeast Asia and worldwide. DIN compliance means the product can interface with transformer platforms designed to European specifications, offering convenient interchangeability, well-defined acceptance criteria, and easier matching of spare parts with existing equipment in the market. For exporters, DIN compliance directly affects market access and customer trust, forming an important foundation for winning European orders.

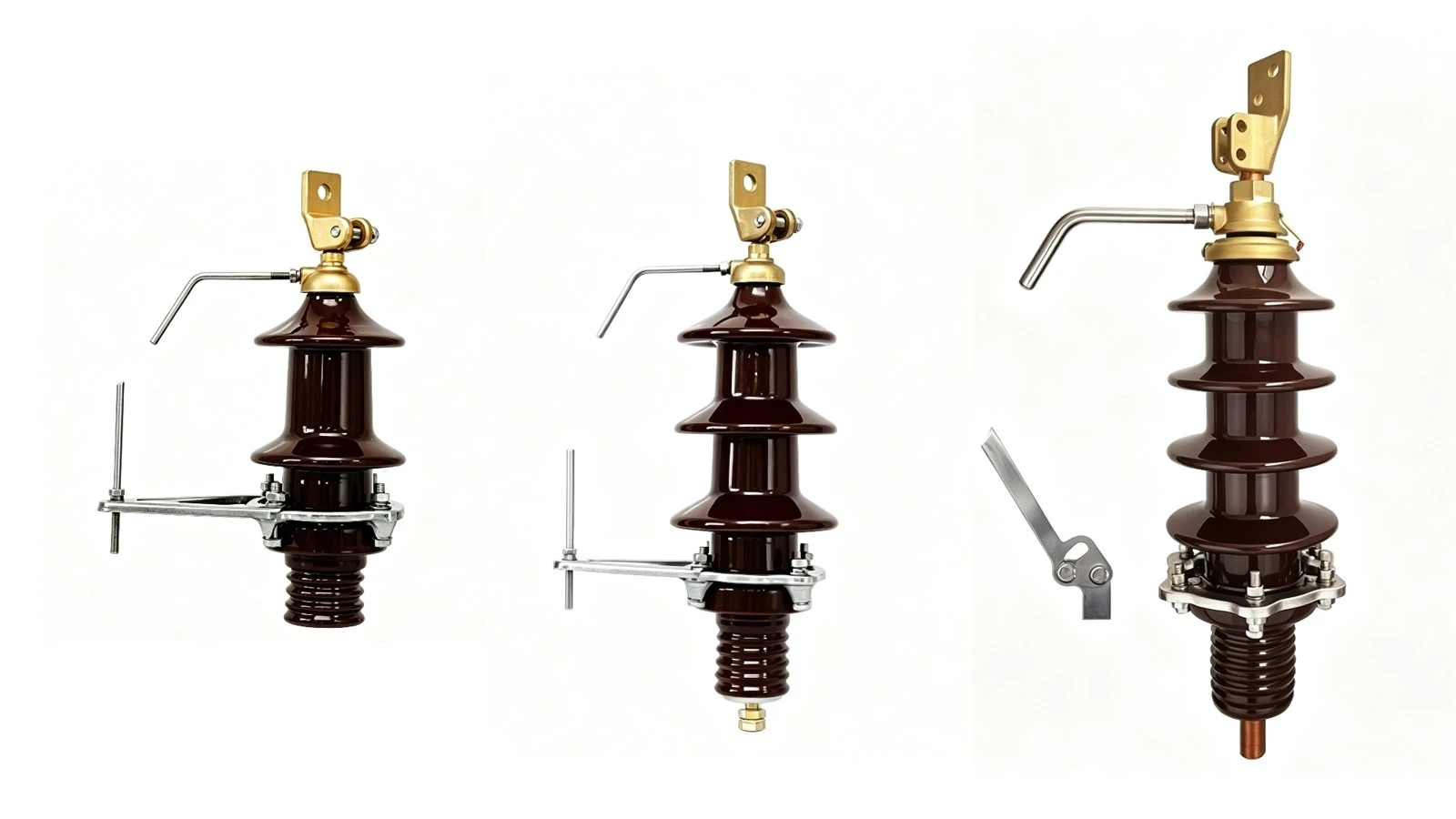

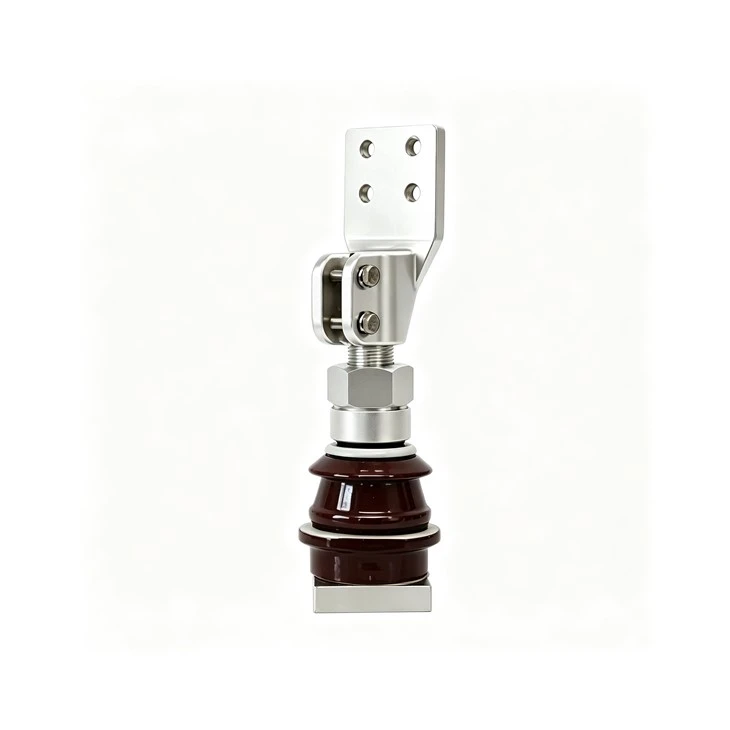

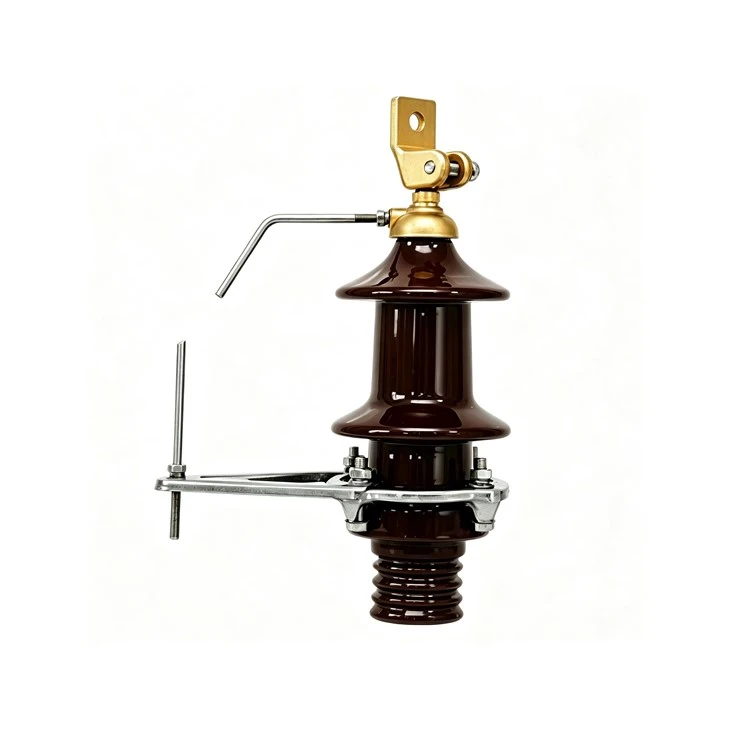

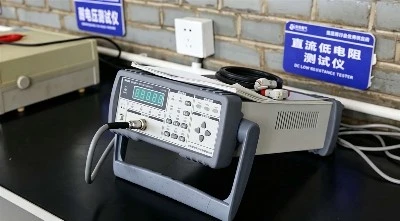

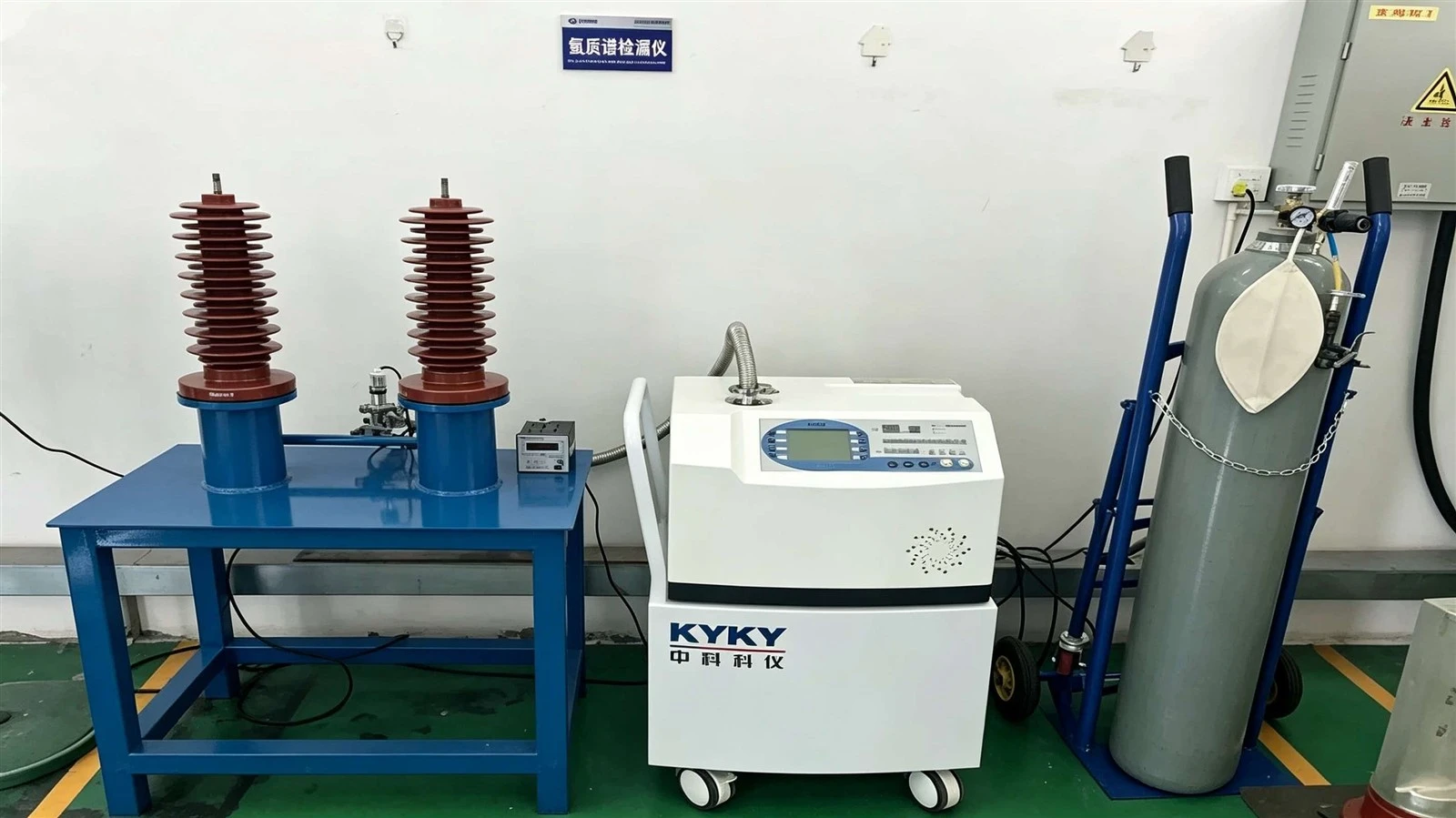

DIN standard bushings are widely applied to high- and low-voltage leads of oil-immersed distribution and power transformers, covering low-, medium- and high-voltage classes with currents from 250A to 4500A, with DIN 42531/42532/42533 series meeting various specification requirements, and installation dimensions and connection terminals adjustable per customer drawings. Choosing DIN standard bushings ensures product dimensions and parameters align with mainstream transformer designs in European and international markets, shortening selection and acceptance cycles; products undergo routine tests per standard requirements, with stable and traceable performance. Meanwhile, the DIN system shares the same lineage as the current EN series with good compatibility, providing long-term reliable and sustainable supply assurance for projects targeting German and European markets, and facilitating future expansion and spare part replenishment.

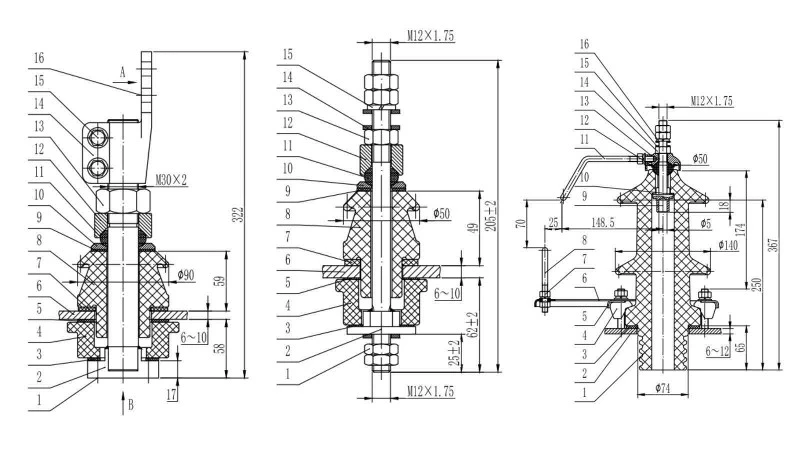

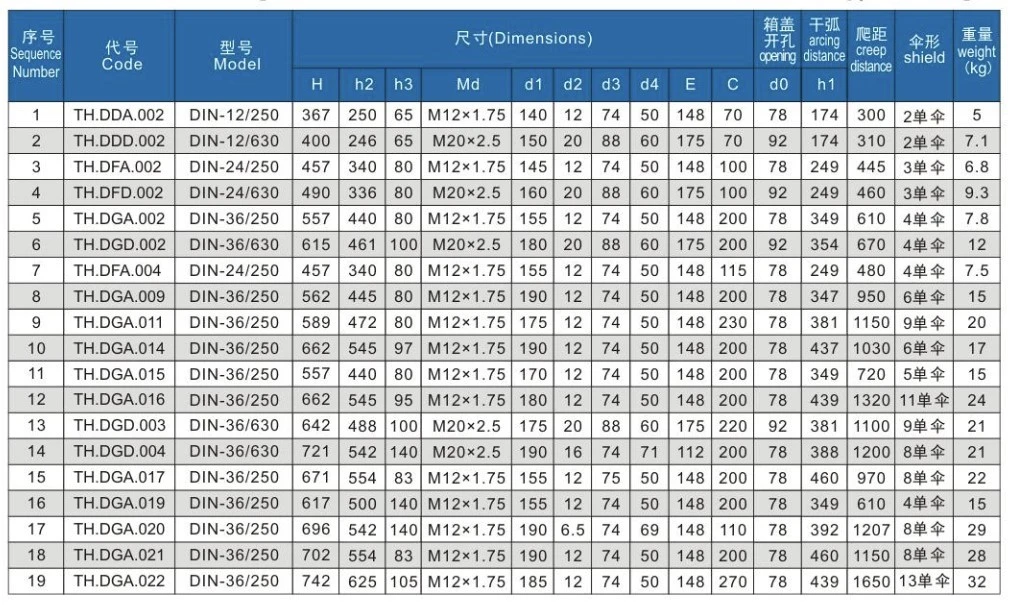

DIN standard bushings are manufactured to the dimensional requirements of the DIN series, and technical drawings are the key basis for selection and installation design. Accurate drawings ensure that the porcelain profile, flange mounting dimensions and tank interface correspond precisely, avoiding installation deviations and on-site rework while safeguarding interchangeability with European transformer platforms. We provide complete technical drawings for every DIN standard bushing, covering outline dimensions, installation dimensions and flange drilling details, available in PDF and editable formats (such as DXF/DWG) for direct use in customer design. Our engineering team can also review customer-supplied drawings, confirm installation solutions and produce bushings per drawings, ensuring a precise match with your transformer design.

Selection of DIN standard bushings mainly depends on four factors: voltage rating, rated current, mounting dimensions and application environment. First, select the corresponding series (such as 10NF/20NF/30NF) according to the transformer voltage rating to ensure the insulation level meets requirements; second, match the bushing current-carrying capacity with the transformer rated current, with conductor and terminal specifications corresponding to the current class; third, confirm the flange mounting dimensions against the tank cover hole size to ensure assembly compatibility; finally, determine the creepage distance and shed design based on the pollution level of the installation site. For fast and accurate selection, please provide the transformer's rated voltage, rated current, tank hole dimensions and application environment, and our engineering team will help you confirm the most suitable model.
