Hebei Anmei Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of ansi standard transformer bushing in China, also supports customized service. If you're going to buy high quality ansi standard transformer bushing made in China, welcome to get quotation from our factory.
Product Introduction

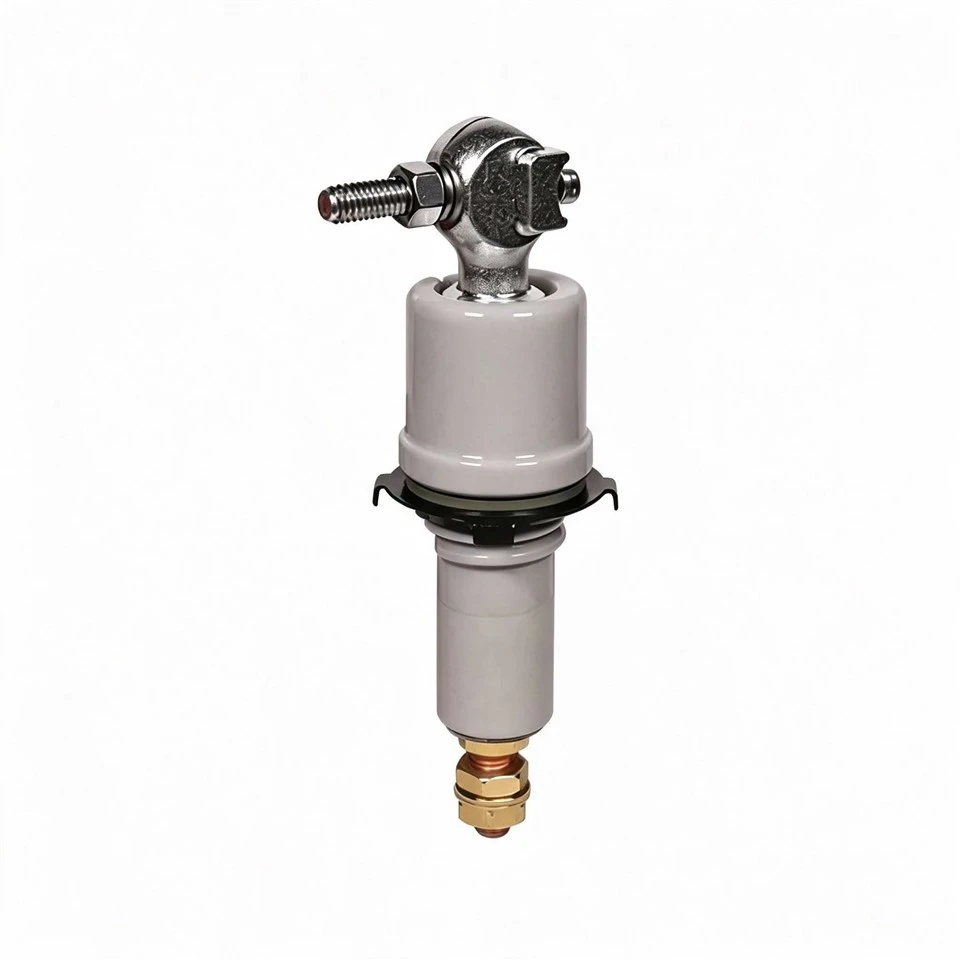

ANSI standard bushings are transformer bushings manufactured in accordance with the American National Standards Institute (ANSI) specifications - a key compliance component for entering the North American market. In North America, transformer manufacturers and utilities commonly require bushings to meet the ANSI standard series, ensuring that electrical performance and mounting dimensions fully match existing equipment in the market, enabling safe and reliable operation as well as convenient interchangeability for maintenance. ANSI standard bushings are widely applied in oil-immersed distribution and power transformers, performing the core functions of carrying winding leads through the tank wall while providing insulation to earth and firm mechanical support - indispensable components in North American grids, substations and industrial power distribution projects. Choosing ANSI-compliant bushings helps customers avoid compliance risks, shorten project acceptance cycles and ensure long-term stable operation of equipment.
The manufacturing process of ANSI standard bushings starts with high-grade electrical porcelain materials, going through batching, forming, drying, glazing, high-temperature firing, machining and metal part assembly. The porcelain body is produced from high-alumina electrical porcelain formulas, formed by isostatic pressing or slip casting with precise trimming, coated with a uniform glaze layer and then fired in a high-temperature kiln, giving the body excellent dielectric and mechanical strength. After firing, the end faces and mating surfaces are precision ground to ensure accurate mounting dimensions. The aluminum flange is produced by casting and machining, and securely assembled with the porcelain body through reliable cementing or sealed mounting; the conductive rod is inserted and sealing components are installed. Before delivery, every bushing undergoes electrical tests and dimensional inspection in accordance with ANSI requirements, ensuring stable performance and reliable interchangeability in installation..

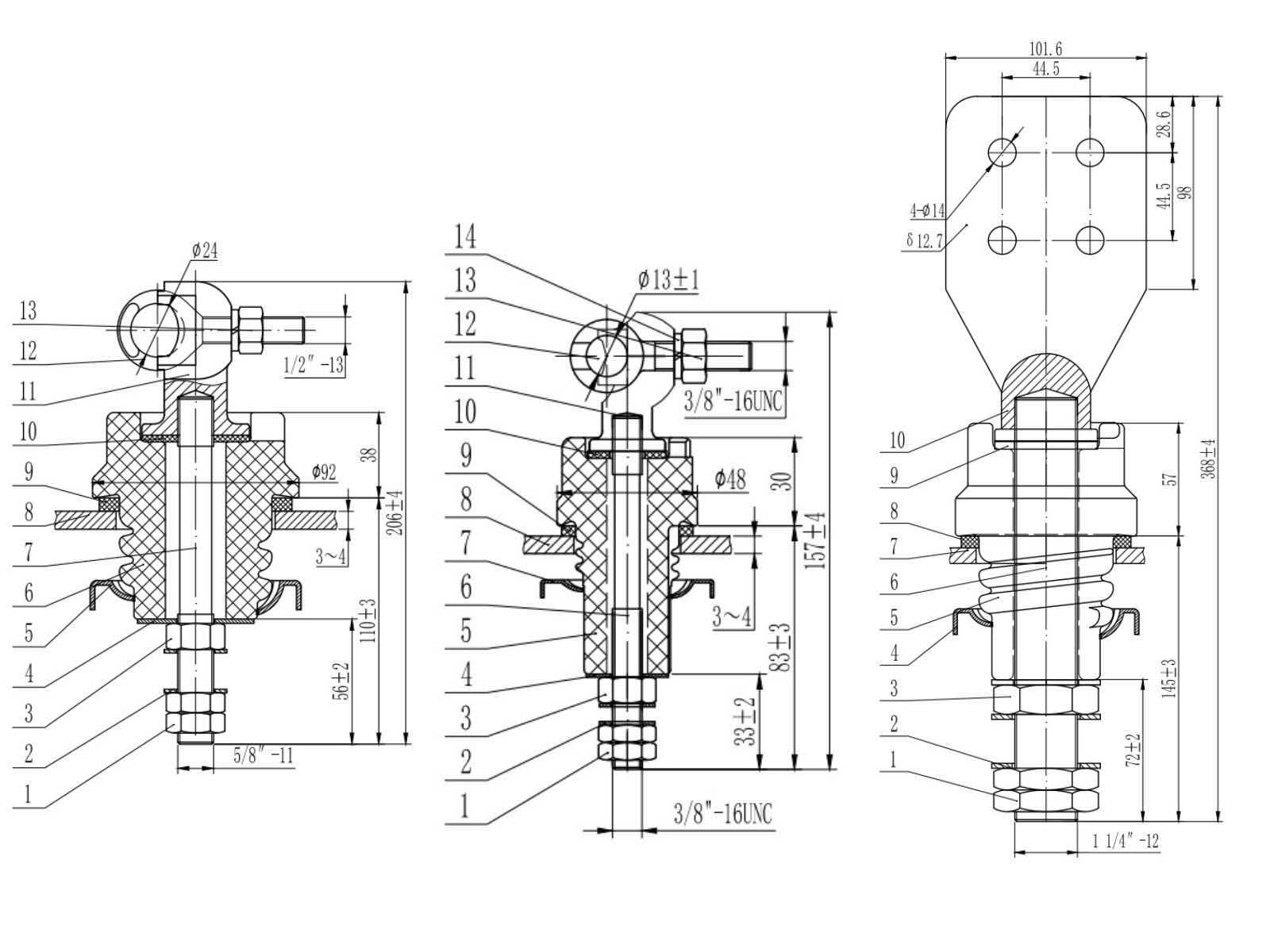

Accurate technical drawings are the core basis for bushing selection and transformer design. The outline dimensions, flange mounting dimensions and electrical parameters of ANSI standard bushings must match the transformer tank interface precisely - any deviation in drawings may affect installation efficiency or even cause rework on site. Therefore, we provide complete technical drawings for each ANSI standard bushing, including outline dimension drawings, installation dimension drawings and flange drilling details, in PDF and editable formats (such as DXF/DWG) for customer selection and design reference. Meanwhile, our engineering team offers full technical guidance: assisting customers in confirming installation solutions, reviewing customer-supplied drawings, and producing bushings per drawings to ensure a seamless fit with your transformer design.

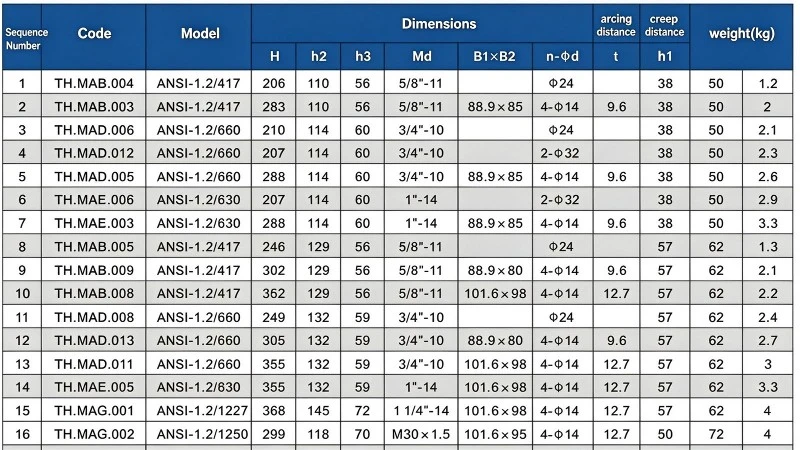

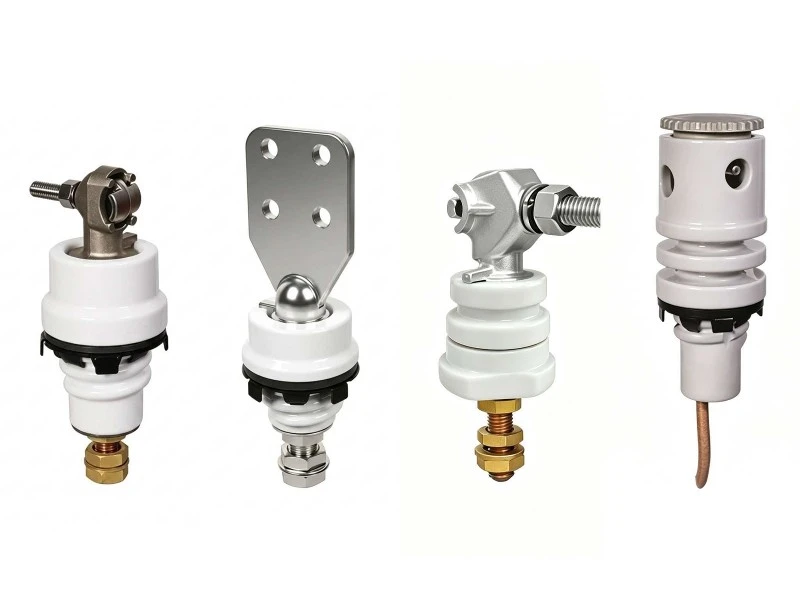

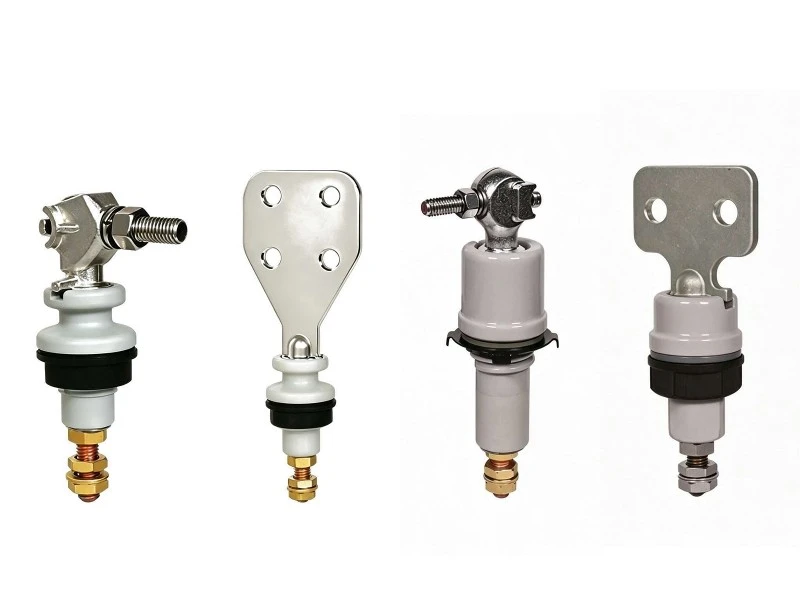

This product covers several specifications and models - the table above lists some of them for selection reference, covering different voltage ratings, rated currents and flange mounting dimensions to flexibly suit oil-immersed transformers of various capacities and structures. For selection, please match the transformer's rated voltage, rated current and tank mounting hole dimensions against the parameters in the table to confirm the required specification. If the required specification is not listed, we support customized production per drawings and technical requirements - our engineering team will first confirm the mounting interface and electrical parameters to ensure a perfect match with your design. Detailed parameters are subject to the final confirmed product specification; please feel free to contact us for complete selection documentation or technical consultation.
why choose us
Choosing us means reliable quality, fair pricing and on-time delivery.

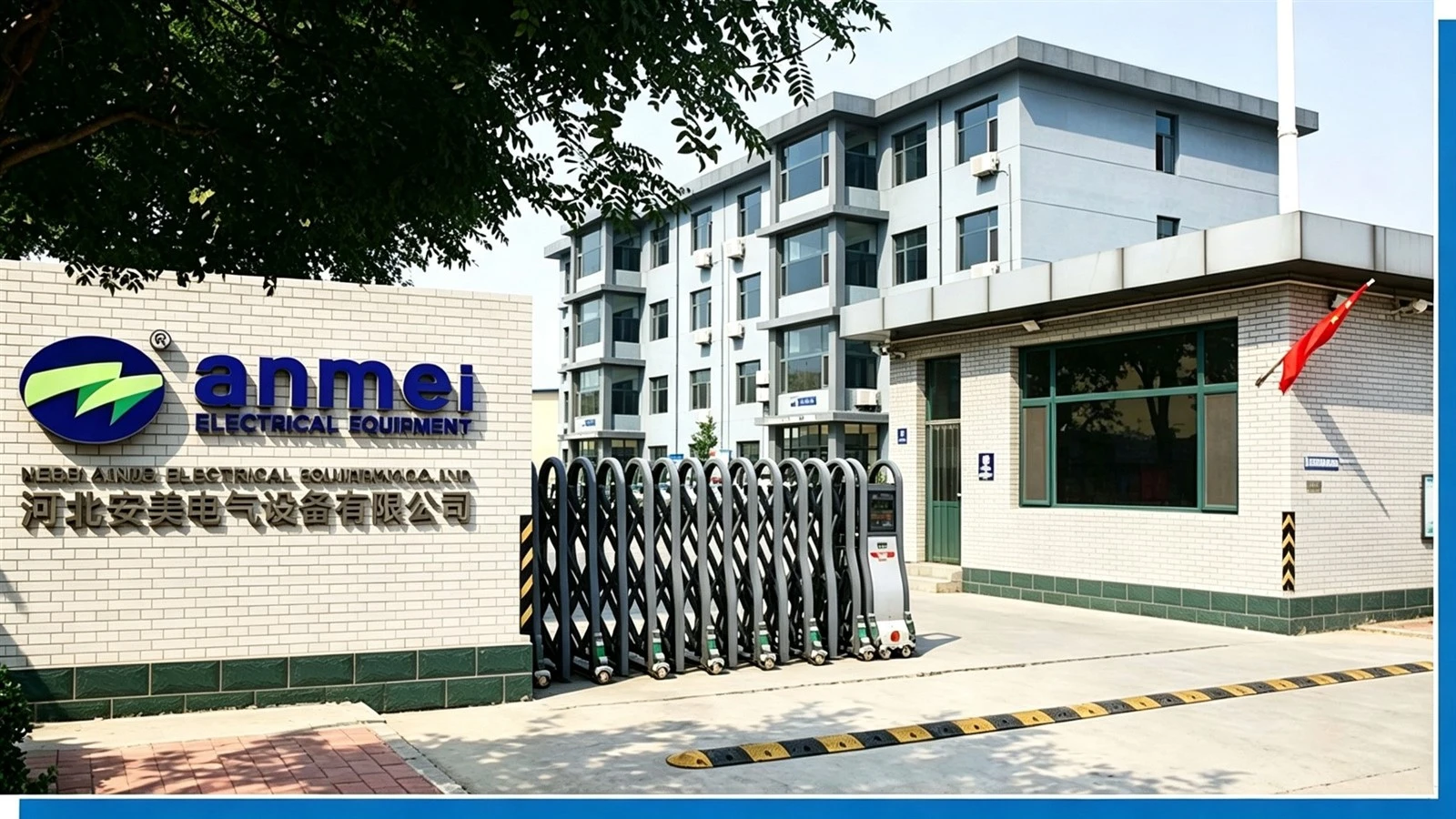

Hebei Anmei Electric Equipment Co., Ltd.
Hebei Anmei Electric Equipment Co., Ltd., based in Hejian, Cangzhou, Hebei, is a high-tech enterprise integrating research, manufacturing and sales, founded in 2014 and focused on the oil-immersed transformer bushing field. With our own factory, we complete the whole chain from material sourcing to finished goods in-house, ensuring mature technology and stable capacity for reliable bushing supply to customers at home and abroad, upholding a quality-first philosophy and growing together with our customers.
Our products cover three families - porcelain, resin for wind and solar transformers, and silicone rubber - available in German (DIN), US (ANSI), European (EN), Australian (AS) and Brazilian (NBR) standard series, rated up to 40.5kV to adapt to various operating environments. Supported by our in-house R&D center and professional engineering team, we offer full-cycle services from product selection advice and drawing confirmation to tailored production. With reliable quality, fair pricing and on-time delivery, we have earned long-term trust from numerous transformer manufacturers and power projects.
our Factory & Workshop
In-house production across the whole process makes the quality of every bushing visible and trustworthy.

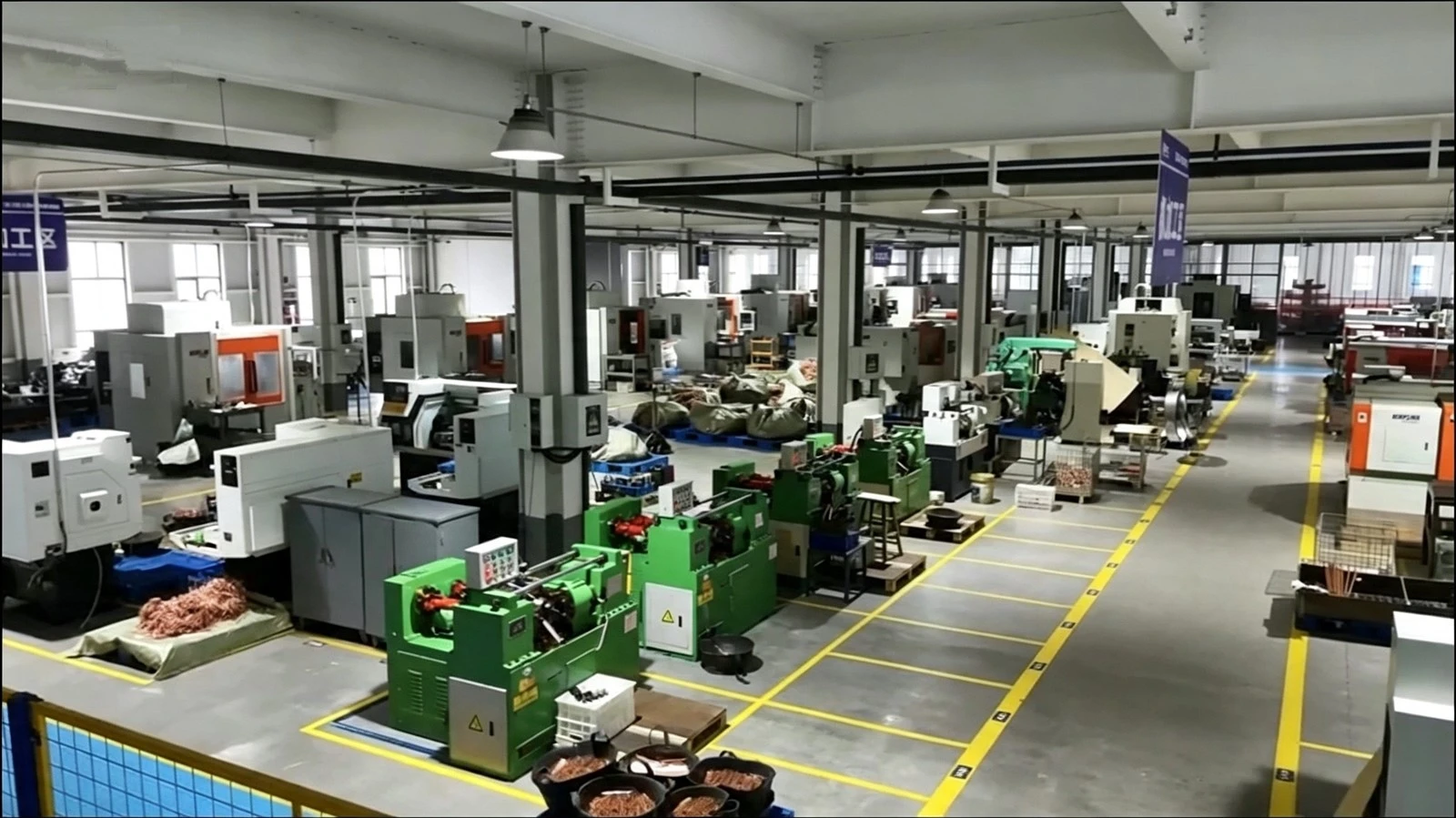

Our Factory
Our own production base, manufacturing under full in-house control.
Anmei owns its production base with a complete production line from material processing to finished product packing, ensuring stable capacity and controllable delivery. Full in-house manufacturing guarantees consistent quality of every bushing and provides reliable support for bulk orders and long-term supply. Whether standard models or customized specifications, our factory organizes production efficiently to ensure on-time delivery.

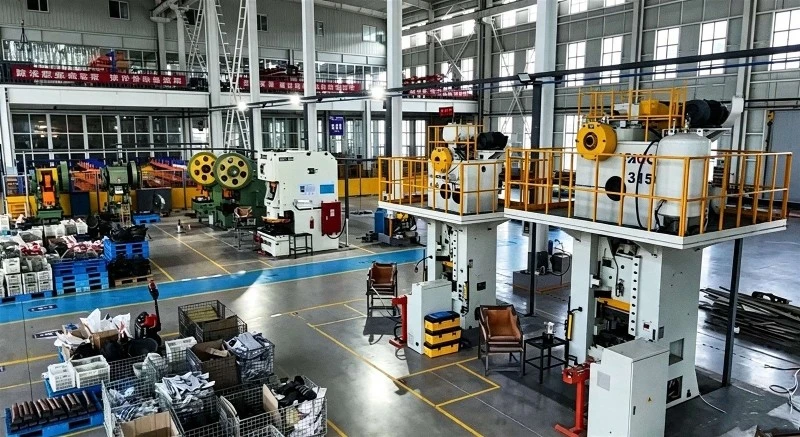

Our Workshop
From forming and firing to assembly and inspection, every step is strictly controlled.
In our workshop, processes from porcelain forming, high-temperature firing to metal part assembly and final inspection are well-organized and strictly controlled. Standardized operations and batch-by-batch inspection ensure that every stage of the product stands up to customer scrutiny.All workshop processes follow standardized procedures with disciplined operation, ensuring high consistency of products.
A Selection of Our Manufacturing Processes
Electrical Test Equipment
Equipped with multiple electrical test devices for verifying insulation performance, ensuring safe and reliable products before delivery.
CNC Machining Center
Equipped with CNC machining centers for high-precision machining of metal parts such as aluminum flanges.
Vacuum Casting Process
The insulation parts are vacuum-impregnated to eliminate internal voids and enhance insulation and moisture resistance.
CNC Lathe
CNC lathes perform precision turning of conductive rods and flanges, ensuring dimensional accuracy.
Porosity Test
Porosity testing verifies the sintering density of porcelain bodies, ensuring insulation and mechanical performance.
Material Composition Analysis
X-ray fluorescence spectrometry analyzes the composition of porcelain and metal materials, controlling quality from the source.
Helium Leak Test
Helium mass spectrometer leak testing verifies sealing performance, ensuring reliable oil-leakage prevention.
Resistance & Withstand Voltage Test
Testing of conductor circuit resistance and insulation withstand voltage ensures all electrical parameters pass.
Our Service Processes
Our free service hotline: 0317-3628666
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
Companies We Have as Clients
We look forward to building long-term cooperation with distributors and partners worldwide.
FAQ
Q: Where is your factory located?
A: Our factory is in Hejian City, Cangzhou, Hebei, China - a renowned base for transformer bushing manufacturing, with convenient transport for domestic and export logistics.
Q: What products does your company mainly manufacture?
A: Our company is a professional manufacturer specializing in high- and low-voltage bushings for oil-immersed transformers. Our main products include porcelain bushings, resin bushings for wind and solar transformers, and silicone rubber bushings, with voltage ratings up to 40.5kV and available in ANSI, EN, AS, DIN and NBR standard series.
Q: Do you have any certifications?
A: Our products are manufactured and tested in accordance with relevant international standards, and our factory operates under a quality management system. Please contact us for the certificate list.
Q: What test reports can you provide?
A: Routine electrical test reports per the applicable standard are available with each shipment; type test reports can be discussed per project requirements.
Q: What is the ordering process?
A: Quotation → order confirmation → production → inspection → packing → shipment; our sales team follows up every step.
Q: How do you handle after-sales issues?
A: Our team provides timely technical consultation and after-sales support; please contact us with the details for prompt resolution.
