Hebei Anmei Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of Low-Voltage Aluminum Flange Porcelain Bushing in China, also supports customized service. If you're going to buy high quality Low-Voltage Aluminum Flange Porcelain Bushing made in China, welcome to get quotation from our factory.

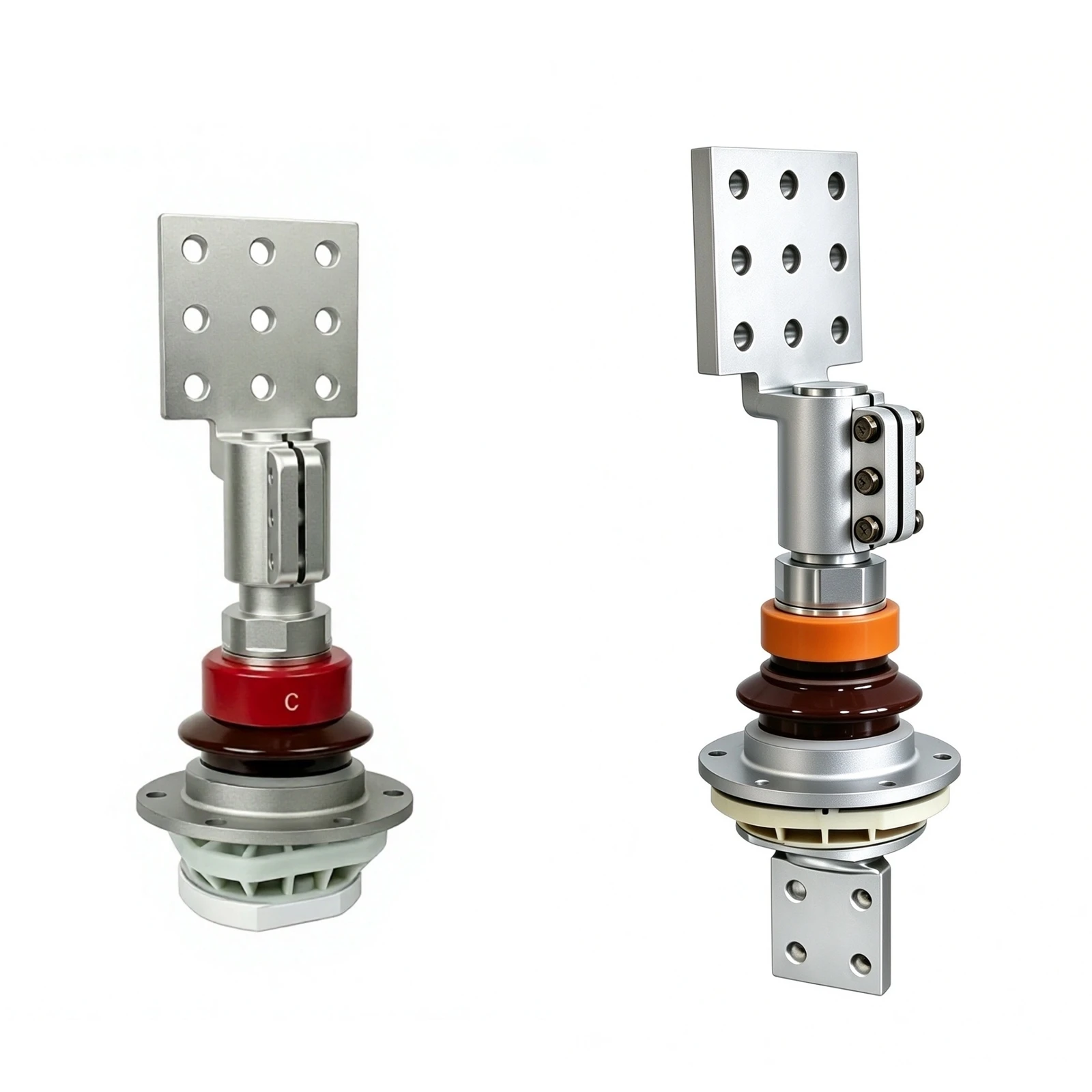

Aluminum Flange Porcelain Transformer Bushing
The transformer industry forms the backbone of power systems, with oil-immersed transformers as its core equipment. As an indispensable insulation accessory, the aluminum flange porcelain transformer bushing is widely adopted by transformer manufacturers and the power industry, supporting safe and stable grid operation.
Products Description

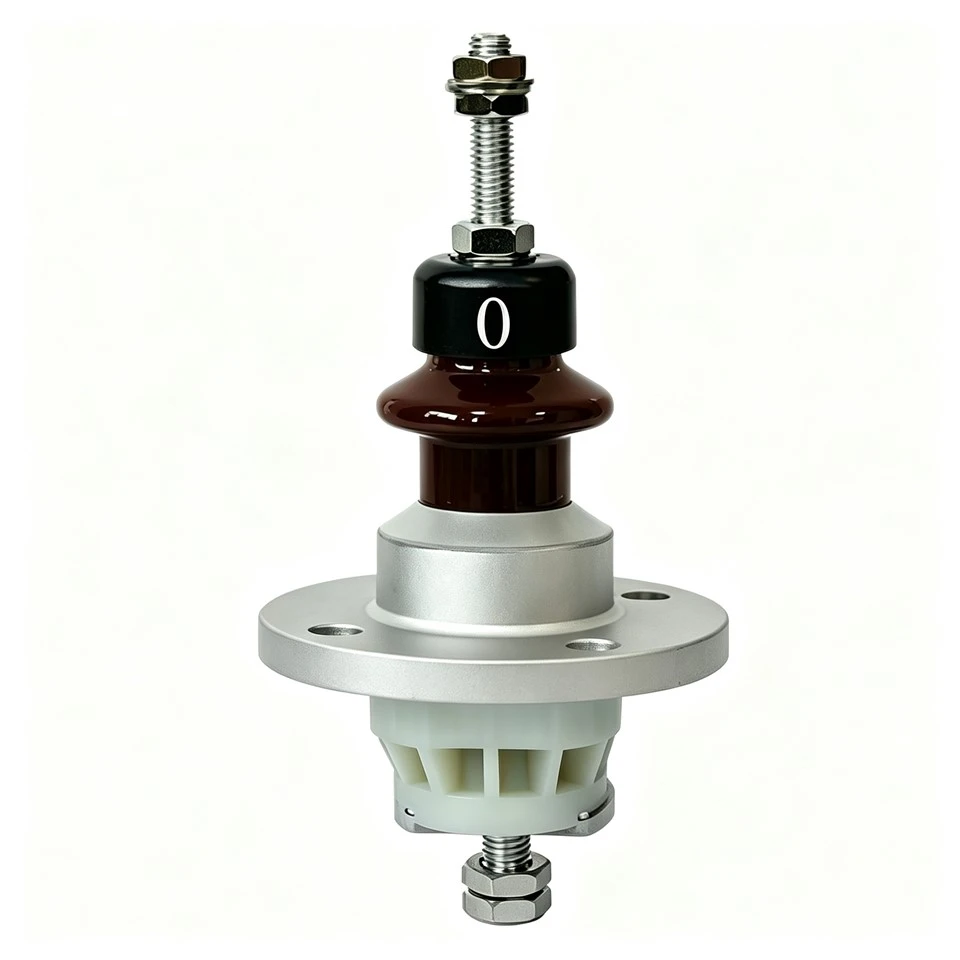

Distribution transformers are among the most widely deployed equipment in power systems, and their operational reliability directly affects the security of power supply. As the main insulation device outside the transformer tank, the insulating bushing carries the critical functions of leading out winding leads, providing insulation to earth, and fixing and supporting the leads - a key accessory widely recognized across the transformer industry. Developed to meet the needs of the distribution transformer sector, the 1kV low-voltage aluminum flange porcelain bushing features a high-grade electrical porcelain body with an aluminum flange, offering a simple, leak-proof and maintenance-free design with multiple connection options and OEM customization, widely used in oil-immersed distribution transformers to support manufacturers and utilities in ensuring long-term stable operation.
In service, the bushing continuously withstands load current and system voltage while being exposed to rain, pollution and temperature variations; its reliability directly affects the safe operation of the transformer and the power grid. With a proven pure porcelain structure, the aluminum flange porcelain bushing delivers maintenance-free operation that reduces the total lifecycle cost of the transformer. The shed profile of the porcelain body extends the creepage distance, enhancing anti-pollution flashover performance in various climatic conditions. Every bushing is factory-tested for consistent quality, providing transformer manufacturers, power projects and utility maintenance teams with long-term reliable supply, with specifications customizable to project requirements.

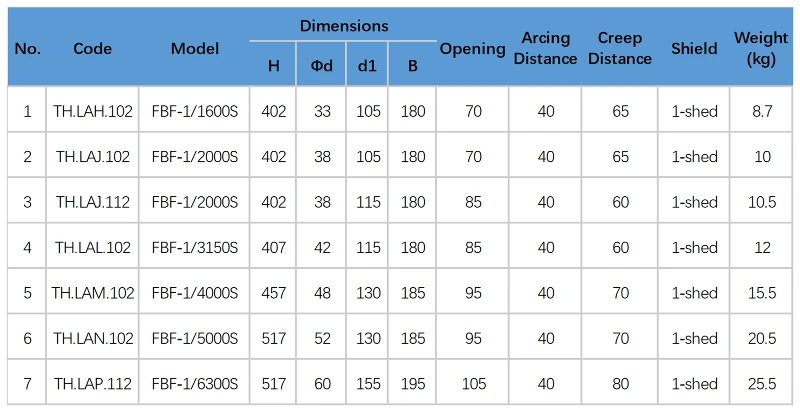

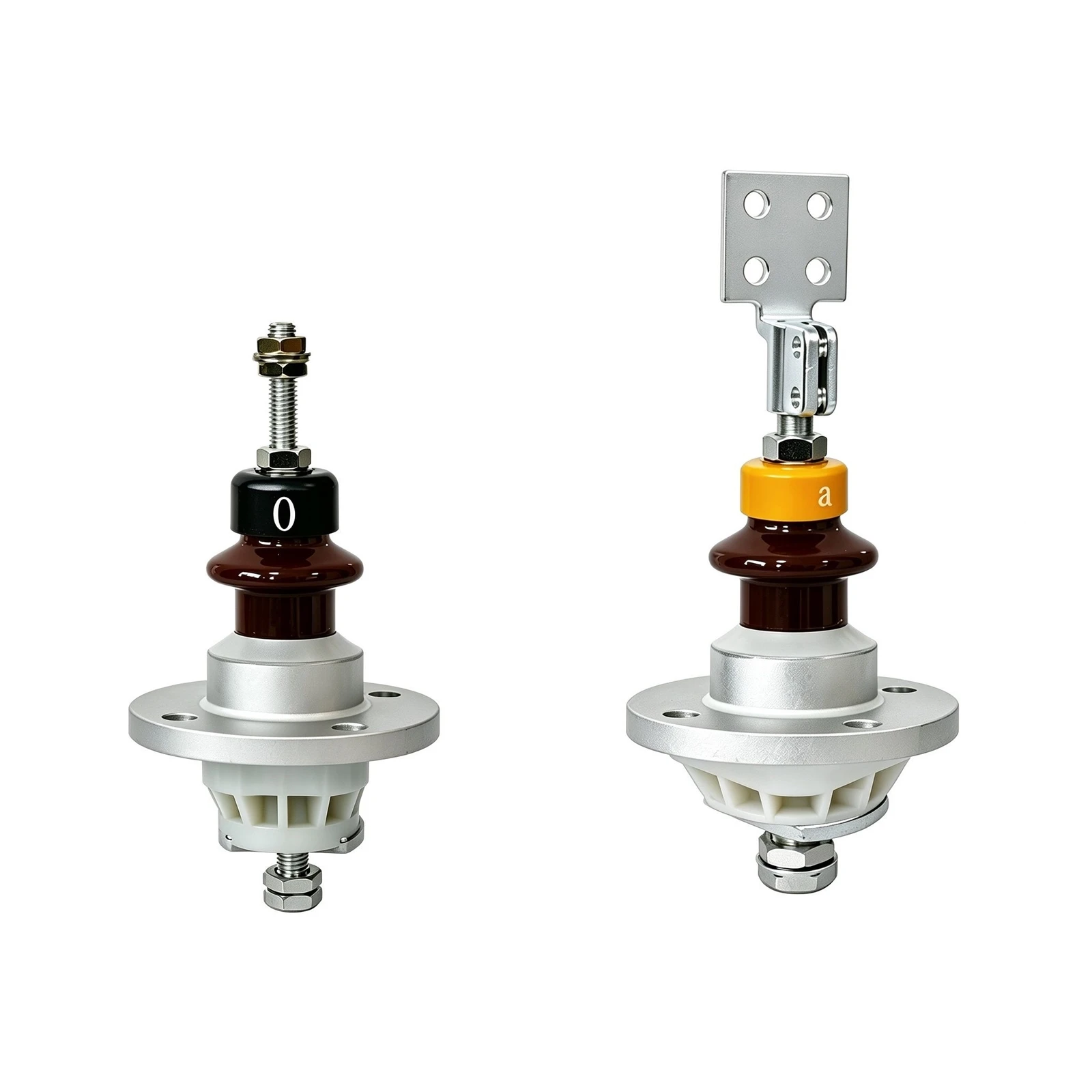

This product is available in a wide range of specifications and models, covering different rated current levels, porcelain body dimensions, flange mounting sizes and connection terminal types, to flexibly match distribution transformers of various capacities and designs. Customers can select the appropriate specification according to the actual design requirements of the transformer low-voltage side, or provide drawings and technical requirements for customized production, ensuring that installation dimensions, electrical performance and sealing methods fully meet project needs.

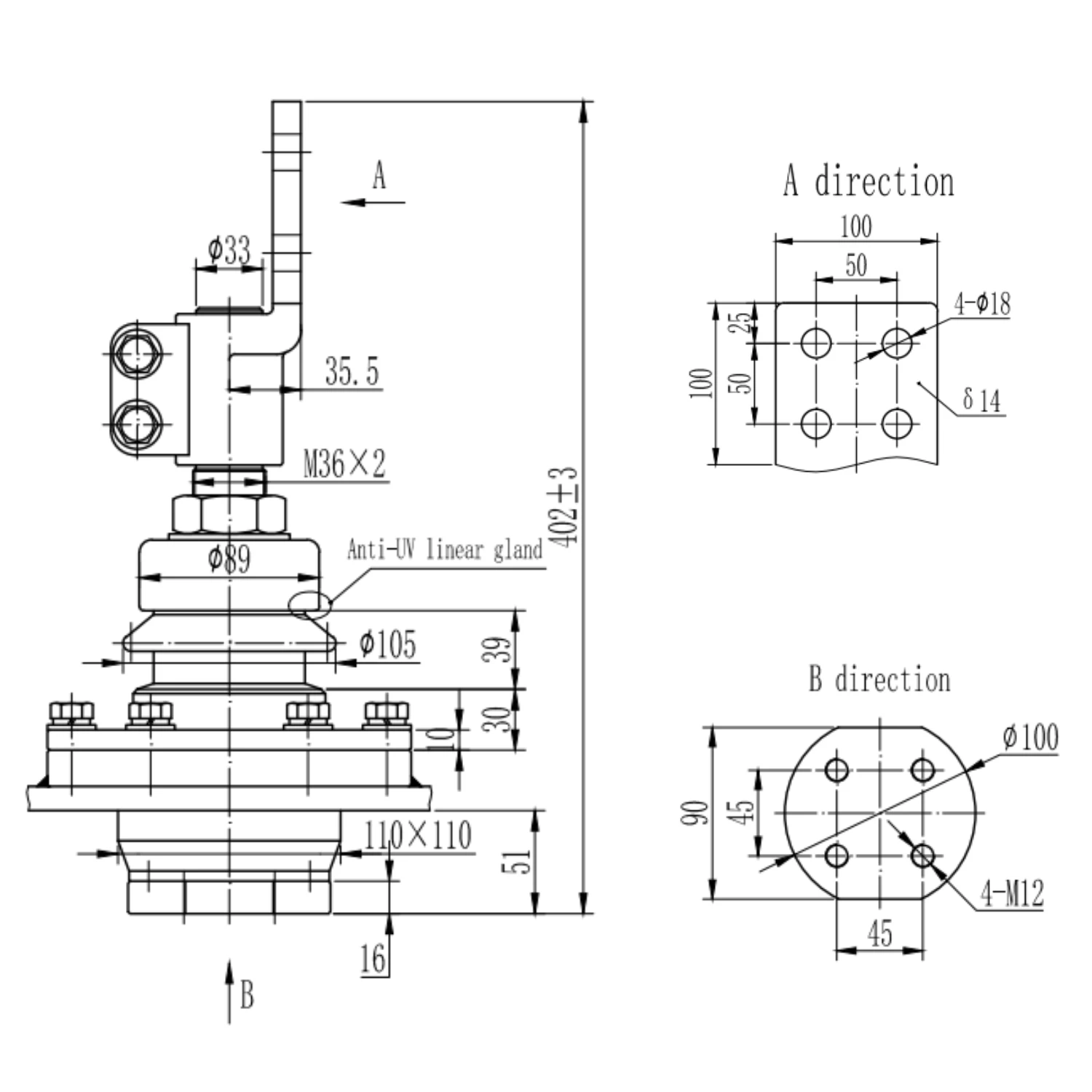

Complete technical drawings are available for this product, including outline dimensions, installation dimensions and flange drilling details, for customer selection and transformer tank design reference. Drawings can be provided in PDF and editable formats (such as DXF/DWG). Customers may also send their own drawings or technical requirements to us; our engineering team will review and match the drawings and manufacture the bushings accordingly, ensuring full consistency with the transformer mounting interface.

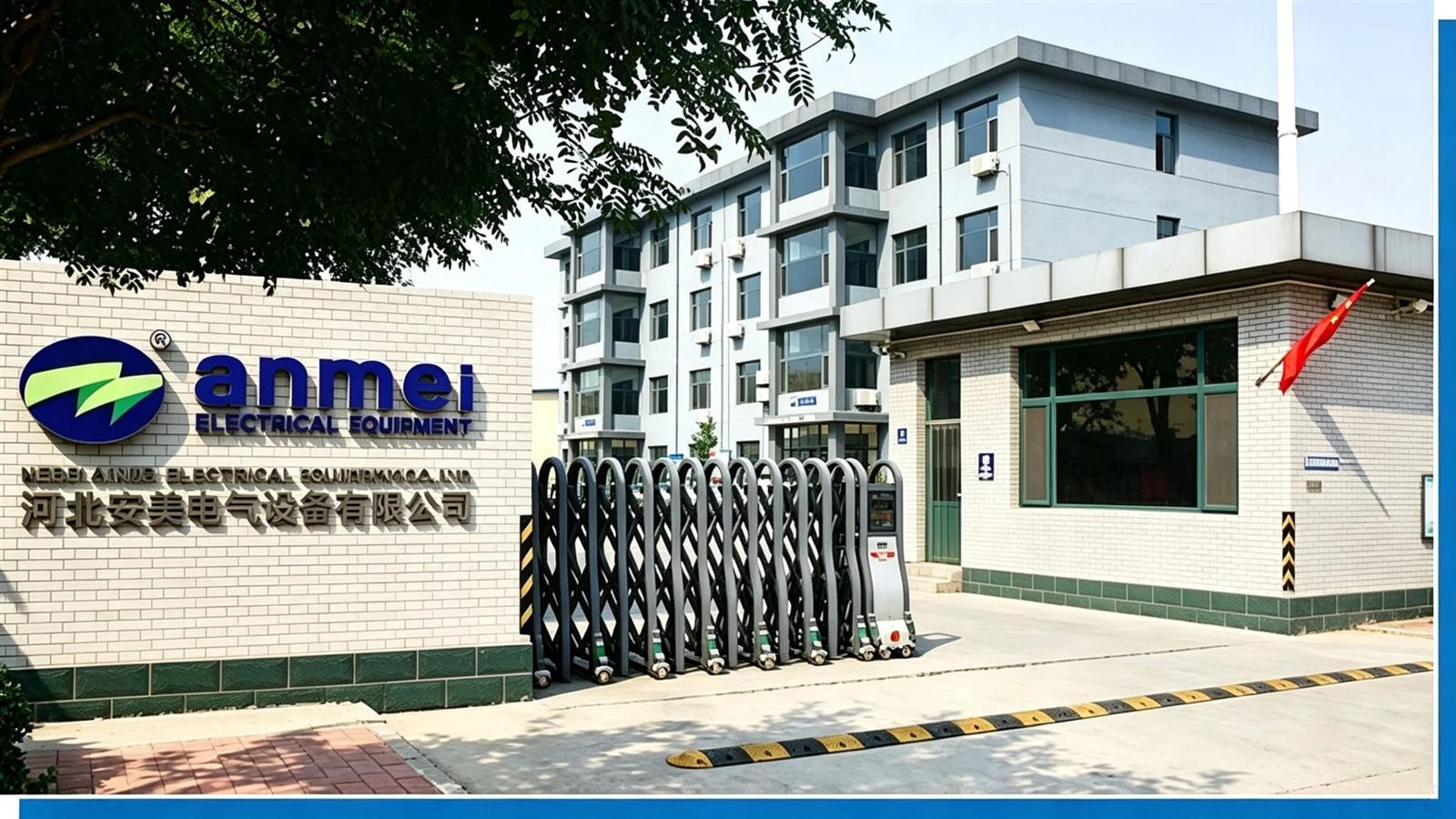

Company Introduction
Hebei Anmei Electric Equipment Co., Ltd. is a professional manufacturer of transformer bushings, with 30+ years of dedication to high- and low-voltage bushings for oil-immersed transformers. Covering the full chain of R&D, production and sales in-house with our own plant, we control the entire process from material inspection to finished product delivery, ensuring stable and reliable quality. With stable quality, competitive pricing and timely delivery, our products have been exported to many countries and regions, earning long-term trust from transformer manufacturers and power projects.
In-house R&D Capability
Our in-house R&D center keeps optimizing product design and manufacturing processes, ensuring adaptability to various operating conditions and project requirements.
Trusted Worldwide
Products are shipped to countries and regions worldwide, earning wide acclaim through consistent quality and continuously supplying transformer manufacturers globally.
Why Choose Us
In-House Manufacturing
With our own manufacturing plant, the entire process from product forming and firing to metal part assembly is completed in-house, ensuring controlled quality, stable capacity and reliable delivery.
01
Complete Product Range
Covering porcelain, wind/solar resin and silicone rubber bushings, and a full range of bushing series in various standards.rated up to 40.5kV.
02
Quality Assurance
Full-process quality control from incoming materials to finished products; every bushing is strictly tested with traceable test reports.
03
Customization Service
Customized production is available per customer drawings and technical requirements, flexibly matching various designs and installation needs.
04
Efficient after-sales service
To provide customers with a range of product services,24 hours online
05
Our Company Showcase
Factory & Workshop Showcase
view more
A Glimpse of Our Patent Certificates
view more
Company Product Range Overview
view more
A Glimpse of Our Instruments
view more
Our Service Processes
Our free service hotline:0317-3628666
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
Multiple Delivery Options
We guarantee safe and on-time delivery of your goods.
FAQ
Q: Are you a manufacturer, trading company or a third party?
A: We are the direct producing factory behind our bushings - porcelain bodies and metal parts are all made in our own workshops. Years of specialization in this field give customers consistent quality and real cost advantages; samples are available for your verification.
Q: Where is your factory located?
A: Our factory is in Hejian City, Cangzhou, Hebei, China - a renowned base for transformer bushing manufacturing, with convenient transport for domestic and export logistics.
Q: What voltage range do you cover?
A: Our bushings cover voltage ratings up to 40.5kV.
Q: How do you ensure product quality?
A:Every production batch is strictly inspected before shipment, with routine electrical tests performed per the applicable standard, ensuring full compliance with standard requirements.
Q: What information do you need for a quotation?
A: Please provide rated voltage, current rating, flange size or drawings, and the required standard - we will quote accordingly.
Q: Do you provide technical support?
A: Yes - our engineering team assists with product selection, installation guidance and technical consultation throughout the project.
