Hebei Anmei Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of european standard transformer bushing in China, also supports customized service. If you're going to buy high quality european standard transformer bushing made in China, welcome to get quotation from our factory.

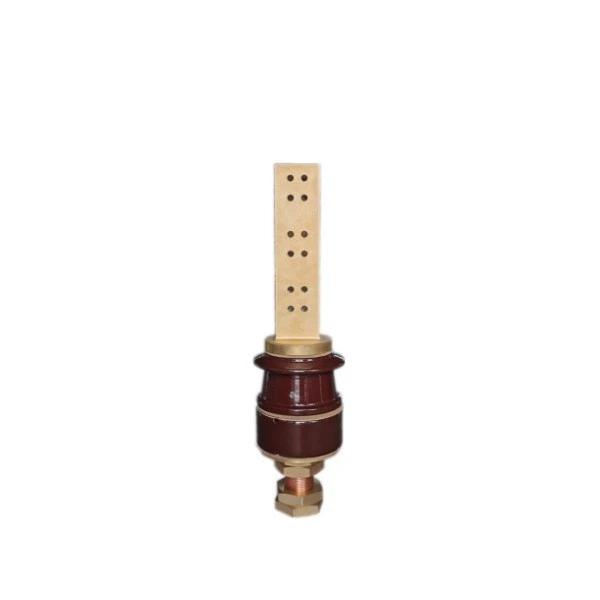

Fully compliant with EN 50180 & IEC 60137, our European standard transformer bushing deliver safe, stable power connection for distribution & power transformers.
complies with EN and IEC standards, suitable for oil‑immersed transformers.
Adopting high-performance insulation and capacitive design, this European standard transformer bushing features low partial discharge, high stability and strong environmental adaptability.
With reliable structure and easy installation, European standard transformer bushing ensures long-term safe operation for power transmission equipment.
Specifications
|
|
|
|
(Dimensions) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H |
h2 |
h3 |
Md |
n-φD |
d1 |
d2 |
d3 |
d0 |
h1 |
|
|
|
1 |
AM.HAA.003 |
EN-1/250 |
194 |
65 |
29 |
M12×1.75 |
|
56 |
60 |
50 |
28 |
56 |
55 |
1 |
|
2 |
AM.HAA.002 |
EN-1/250 |
197 |
68 |
32 |
M12×1.75 |
φ11 |
56 |
60 |
50 |
28 |
56 |
55 |
1 |
|
3 |
AM.HAA.001 |
EN-1/250 |
210 |
65 |
29 |
M12×1.75 |
|
60 |
60 |
50 |
39 |
62 |
95 |
3 |
|
4 |
AM.HAA.008 |
EN-1/250 |
197 |
68 |
32 |
M12×1.75 |
φ11 |
60 |
60 |
50 |
39 |
62 |
95 |
3 |
|
5 |
AM.HAD.002 |
EN-1/630 |
250 |
80 |
44 |
M20×2.5 |
|
76 |
76 |
70 |
45 |
66 |
70 |
1 |
|
6 |
AM.HAD.003 |
EN-1/630 |
245 |
77.5 |
41.5 |
M20×2.5 |
φ11 |
76 |
76 |
70 |
45 |
66 |
70 |
1 |
|
7 |
AM.HAD.001 |
EN-1/630 |
250 |
80 |
44 |
M20×2.5 |
|
75 |
76 |
70 |
45 |
67 |
115 |
3 |
|
8 |
AM.HAD.006 |
EN-1/630 |
245 |
77.5 |
41.5 |
M20×2.5 |
φ11 |
75 |
76 |
70 |
45 |
67 |
115 |
3 |
|
9 |
AM.HAF.001 |
EN-1/1000 |
340 |
88 |
35 |
M30×2 |
2-φ11 |
89 |
100 |
90 |
56 |
67 |
75 |
1 |
Product Detail
Nominal voltage: 1 – 52 kV
Rated current: 250 – 6300 A
Compatible with EN/DIN/IEC standards
Applications
Suitable for oil-immersed transformers (1kV–52kV, 250A–6300A), power substations, industrial power supply, and urban grid renovation.
Key Advantages
EU standard certified: interchangeable, dimensionally consistent, easy installation
High insulation & low partial discharge: long service life, high operational safety
Strong environmental resistance: anti-pollution, anti-humidity, maintenance-free
Lightweight & robust: ideal for indoor & outdoor distribution networks
Why Choose Us
Complete production facilities
Owning precision a pressure gelling machine, oven, forging equipment, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
01
High-quality raw material
We mainly choose high-density alumina porcelain insulation and high-quality oxygen-free copper conductor, ensuring low partial discharge and long service life.
02
Short Delivery time
If one container takes 15-20 days. We also stock some standard-sized European Standard Transformer Bushings, if you need 3-5 pcs, we can deliver soon.
03
Safe packing
European Standard Transformer Bushings will be packed with seaworthy package or in wooden case.
04
Flexible customization
Our R&D team supports customized voltage, current, creepage distance and mounting dimensions for different European transformer designs.
05
Production Process
01 Raw materials
02 Conductive rod surface production
03 Porcelain body forming
04 High-temperature sintering
05 Sampling inspection and flaw detection
06 Dimensional inspection
07 Packaging
08 Transportation
Company profile
Profound Industry Experience
Over 30 years of focus on bushings, solid technical strength, and focus on core scenarios of medium and low-voltage power transmission & transformation and new energy supporting facilities
Diversified Product System
A full range of bushing types, compliant with international standards (US, EU, Australia, Germany, etc.); special models for wind and solar transformers adapted to harsh new energy working conditions
Efficient Production Capacity Response
Supported by automated production lines, daily output of over 2,000 sets, capable of quickly undertaking large orders and customized demands
Improved Quality Control System
Certified by multiple international systems, closed-loop management of the whole process, and product quality recognized by the global market
FAQ
Q: What are the key specifications of the European Standard Transformer Bushing?
A: Nominal voltage: 1–52 kV; Rated current: 250–6300 A; compliant with EN 50180 and IEC 60137; suitable for oil-immersed transformers, power substations and urban grid renovation.
Q: What is the main application of this product?
A: It is mainly used for oil-immersed distribution and power transformers, power substations, industrial power supply and urban grid renovation.
Q: Where is the product manufactured, and what certifications does it have?
A: It is produced in Hebei, China, and complies with EN/DIN/IEC standards, including EN 50180 and IEC 60137. The factory also holds ISO9001 and ISO14001.
Q: What are the payment terms and delivery time?
A: Payment terms: TT, LC; Delivery date: Negotiable. For one container, delivery takes 15–20 days; small orders (3–5 pcs) can be delivered soon with stock.
Q: What tests does the product pass, and what raw materials are used?

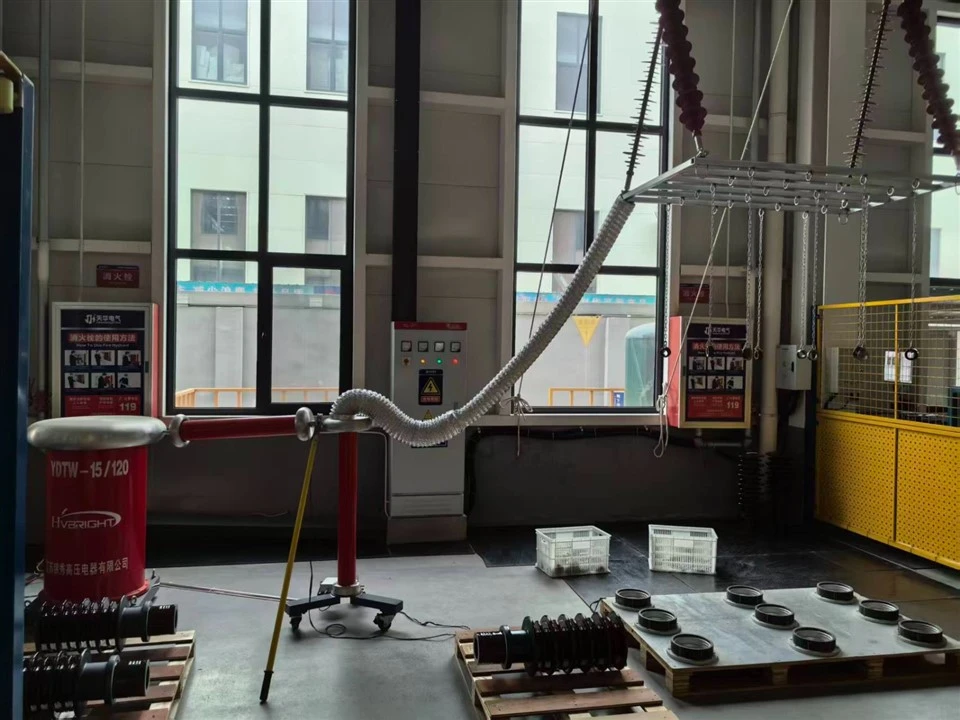

A: Tests include dielectric tests, partial discharge tests, lightning impulse tests, mechanical strength tests and X-ray inspection. Raw materials: high-performance insulation and oxygen-free copper conductor, with anti-pollution and anti-humidity design.
